The Schüco FireStop platform offers new fire-resistant doors for outdoor use as well

With the new aluminum doors Schüco FireStop ADS 90 FR 30-CE, Schüco expands its proven FireStop platform to include fire doors for outdoor use. The existing FireStop offer only included fire doors for interiors. The new Schüco FireStop ADS 90 FR 30-CE fire doors for outdoor use provide 30-minute fire resistance, impressively high resistance values against weather influences, and are marked with CE for use throughout Europe. As part of the FireStop system platform, the Schüco FireStop ADS 90 FR 30-CE doors also feature an open-face profile geometry, which combines modern design with a high degree of flexibility and efficiency in planning, production, and installation.

Fire doors must be technically equipped to withstand fire for a certain period, protect people from heat, and still be operable afterward. However, Schüco's fire and smoke systems offer not only that; as security systems, they also provide protection against burglary and vandalism. Depending on the security requirements, they can be individually tailored to various construction situations.

Solutions for any barrier-free access, acoustics, waterproofing, and thermal insulation requirement

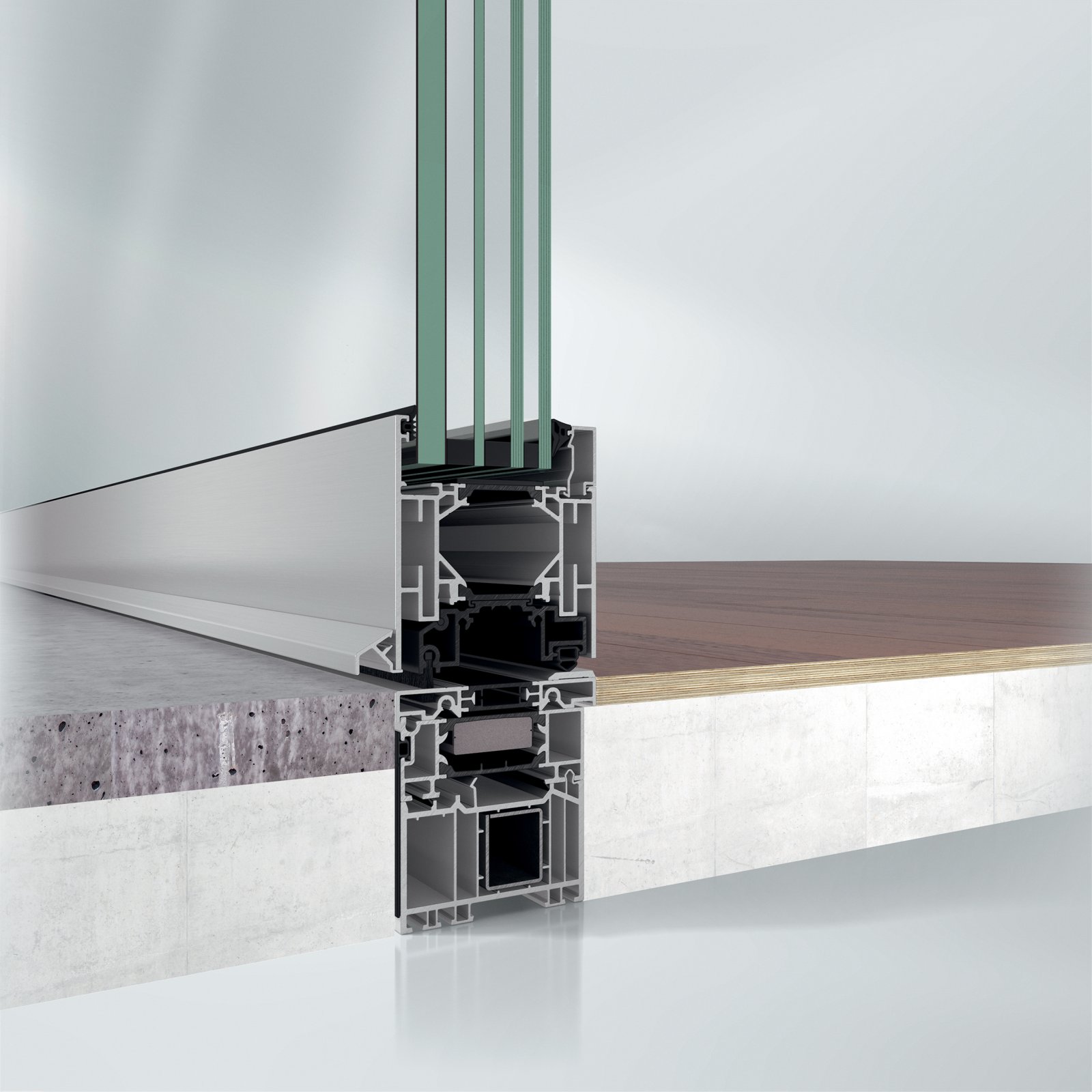

Whether the requirements for barrier-free access, noise reduction, waterproofing, or thermal insulation are any, the Schüco FireStop ADS 90 FR 30-CE doors offer various threshold and bottom profile solutions that flexibly meet the demands of any project. In addition to 30-minute fire resistance, the new fire doors also feature excellent weather resistance values. There are a total of four different threshold solutions available: thresholds with automatic threshold seals (0 mm and 12 mm) and thresholds with insert profile, brush seal, or balloon seal (3 mm and 15 mm). These solutions achieve air permeability up to class 4 and waterproofing up to class 5 A. By using glass or thermal insulated panel infills, the new platform can be tailored to various requirements.

One system for individual architectural solutions

The aluminum fire protection structure without thermal bridges, with a construction depth of 90 mm, offers a high degree of freedom in design for outdoor use. The slim visible widths of the profiles, along with the hidden fittings, create an elegant, minimalist design. Large side and top lights, along with slim profiles, ensure a high degree of transparency. The extension of system dimensions for the construction of single and double doors, with or without side segments, allows for the realization of individual architectural projects for facades while providing maximum user comfort.

A fundamental feature of the system platform is the open-face profile geometry, which allows for additional modifications to existing doors even during operation. The system with compatible construction can be quickly and cost-effectively equipped with additional electrical components, such as electric locks, thus expanding its functions in various ways. Fittings and locks can also be integrated without the need for lengthy machining and can be covered with a simple functional cover. The use of fitting components from established Schüco system platforms guarantees efficient production and assembly.
