Acoustic glazing IZOS with verified sound insulation values

From the perspective of building design, it is becoming increasingly important to consider the fact that modern architecture is moving towards a significant increase in the share of glazed areas on façades. This trend, supported by demands for natural lighting, visual contact with the exterior, and aesthetics, brings increased requirements for the acoustic properties of glazing. Large-format windows and glazed walls represent, from an acoustic standpoint, potentially the weakest point of the facade. Designers must therefore work with precise data and appropriately chosen compositions of insulating glass to maintain the required acoustic standard even with a high proportion of transparent constructions. This is where technical solutions come into play that combine high sound insulation with low thermal transmittance and safety parameters.

Custom Solutions for Needs

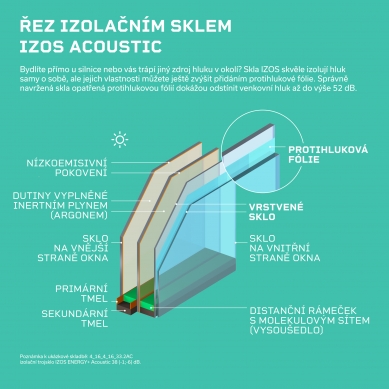

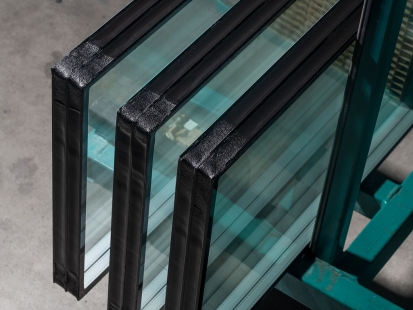

HELUZ IZOS offers a wide portfolio of acoustically optimized insulating glass, designed with various levels of noise load in mind. The foundation of these solutions is multi-layer glazing with inert fillings and laminated glass with acoustic insulating films.

Unlike common generic data, which exhibit a higher degree of uncertainty, HELUZ IZOS prefers physical measurement of the acoustic parameters of glazing on real samples. The result is an extensive database of verified sound insulation values for various compositions of insulating glass. This database is a valuable tool for designers who need accurate data for structural design. It includes glazing from basic double and triple glazing with sound insulation from 31 dB up to highly acoustically effective glass with sound insulation up to 52 dB. A comprehensive range of acoustic insulating glass has been certified at ITC.

For example, the IZOS Triple Acoustic glazing with 8, 4, and 4 mm glass panels meets the requirement for sound insulation higher than 38 dB while exhibiting an excellent thermal transmittance value of Ug = 0.6 W/m²K. The use of glass panels of 8 mm, 6 mm, and safety glass VSG 44.2 ensures, in the case of IZOS Triple Protect Acoustic glazing, air sound insulation of up to 45 dB. Specific solutions, however, always stem from the individual needs and requirements of the client, who gains unique insulating glazing from the HELUZ IZOS brand combining several advantages in one.
