Wooden constructions with Rigips systems

Rigips Company is purposefully expanding and innovating its product portfolio in the area of dry construction systems and now supplies a comprehensive system of building elements for prefabricated wooden constructions.
A new addition to the offer is the Rigidur load-bearing wall panel, which is used for constructing internal partitions as well as for the external perimeter walls of the building. The Rigidur panel is a board element composed of a wooden frame, with a filling made of mineral insulation and sheathing of gypsum fiber boards.

The panel serves a wide range of functions from transferring vertical and horizontal loads, to sound insulation, and even fire resistance.

The introduction of the new construction system to the market was preceded by demanding tests. Several construction assemblies were tested for sound and thermal insulation with very good results. Tests also demonstrated the high effectiveness of Rigidur gypsum fiber boards in addressing fire resistance requirements, achieving ratings of up to REI 60.

Part of the preparations for the new building solution included a certification system for products with complete documentation, materials, and support for manufacturers of wooden constructions. Among the services provided by Rigips are technical consulting, collaboration in creating materials, and commercial support for manufacturers and assembly companies.
As part of the multinational corporation Saint-Gobain, Rigips leverages years of knowledge and experience in the area of prefabricated wooden constructions from around the world, especially from the USA and Canada.

Rigips now offers a comprehensive building system for contractors in the area of prefabricated wooden constructions:

• Rigidur load-bearing wall panel for exterior and interior partitions
• Rigid EPS facade panels for the external insulation system ETICS
• Special insulation drainage and plinth panels, Perimeter panels made of polystyrene for thermal insulation of the basement structure and protection of structural parts in contact with the ground
• Gypsum board systems for attic conversions and ceiling solutions
• Rimano gypsum plasters and paint fillers for final surface finishing
• Thermal insulation based on mineral and glass fibers

Panel manufacturers, prefabricated parts for wooden constructions, as well as designers and architects thus receive a complete system from Rigips for the construction or design of wooden houses.

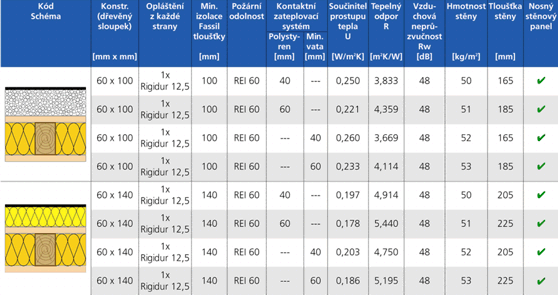

Parameters of Rigidur wooden frame panels for external use

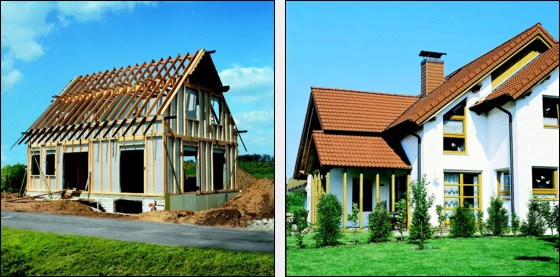

Reference construction:


About Rigips, s.r.o.

Rigips, s.r.o. is a member of the Saint-Gobain group, which as a world manufacturer and distributor processes raw materials (glass, ceramics, plastics, cast iron, etc.) into modern products for everyday life and develops materials for the future.
The origins of Saint-Gobain date back to France in the 17th century, and one and a half centuries later, Saint-Gobain crossed the borders of France. Today, it operates in more than 50 countries around the world, bringing together 1,200 companies and employing more than 200,000 people from 70 nationalities.
Saint-Gobain, a European and world leader in all its business sectors, belongs to the top hundred industrial corporations globally.

In the Czech Republic, Rigips has a fifteen-year tradition. In its 3 production plants, it manufactures products of the highest world quality comparable to leading European manufacturers and meets the new standards introduced in the EU. Due to its affiliation with the Saint-Gobain group, which allocates approximately 345 million EUR annually for research and development, Rigips utilizes know-how from around the world, thus being exceptionally prepared to meet the wishes and demands of its customers.
